RR101 10.1 Inch Raspberry Pi Display IPS Portable Touchscreen Monitor

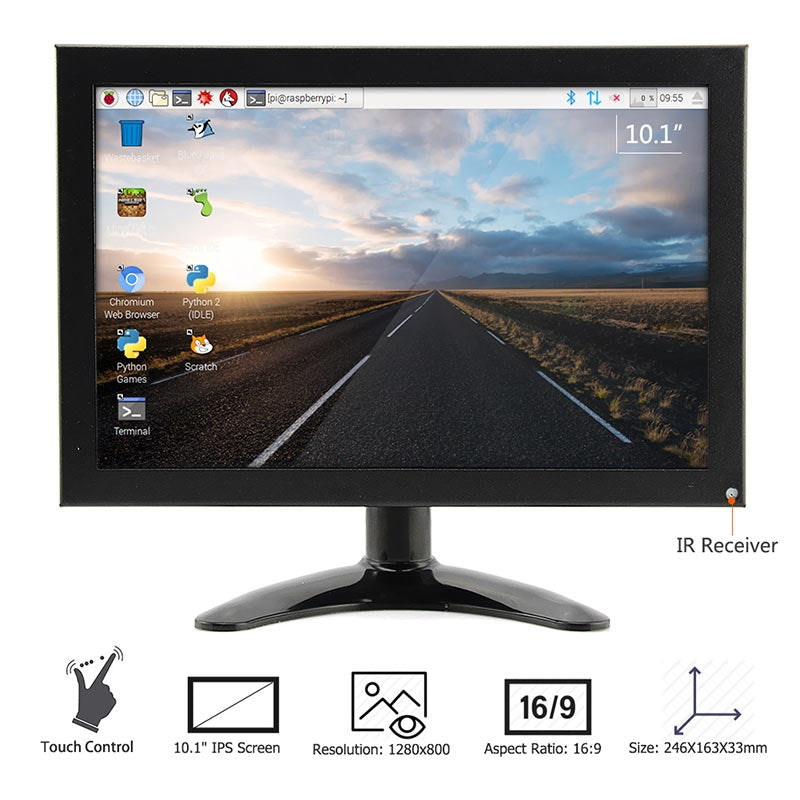

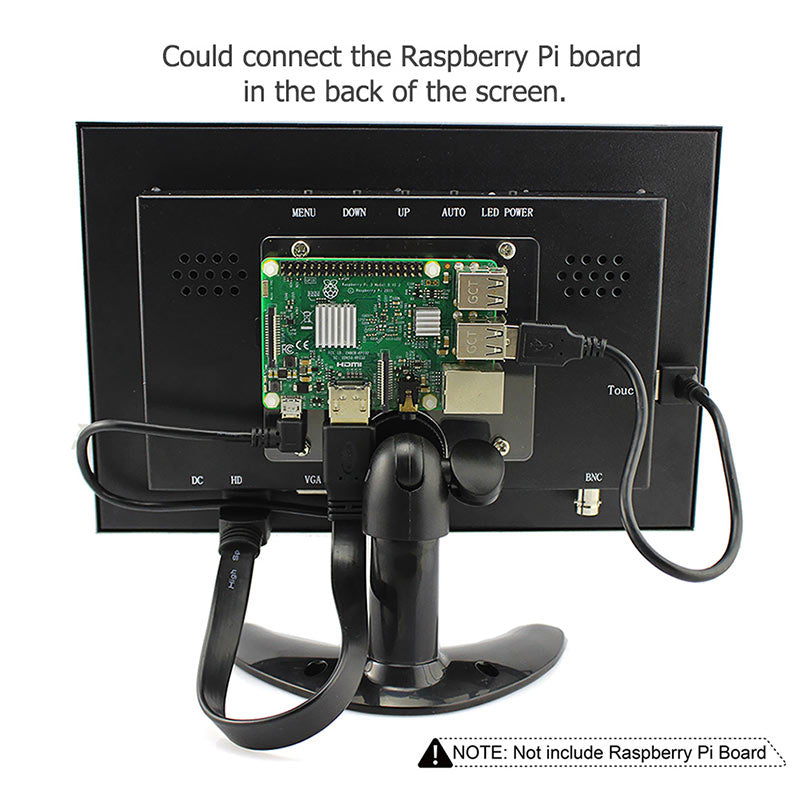

The 10.1inch IPS LCD Monitor has a metal shell and loudspeaker, which could connect to the Raspberry Pi board in the back of the screen. The 10.1 inch IPS LCD Monitor has a high resolution of 1280x800 pixels and can be controlled by touching and remote control. The monitor is widely used in industrial automation, security, video microscopy, car reversing, etc.
People are viewing this right now
Description
The monitor is widely used in industrial automation, intelligent computer, security, video microscopy, industrial equipment dedicated display, car reversing, etc.
Tips for Raspberry Pi:
Step 1: Open the terminal and download the driver on RPI
Run:
git clone https://github.com/Elecrow-keen/Elecrow-LCD101.git
Step 2: Install driver
Run:
CD Elecrow-LCD101
Run:
CD Elecrow-LCD101
sudo chmod +x Elecrow-LCD101
sudo ./Elecrow-LCD101
*When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.
Tips for Windows OS:
Driver link:github link
Specifications
- Model: RR101
- Color：Black.
- Screen size: 24.3 (L) x 16.3 (W) x 4 (H) cm.
- Package size: 31 (L) x 25 (W) x 7 (H) cm.
- Item Weight:1600g.
- Resolution:1280 x 800.
- Wide viewing angle: 85/85/85/85 .
- Shell: metal.
- Input voltage: 12v.
- Contrast ratio: 500:1
- Light intensity: 300

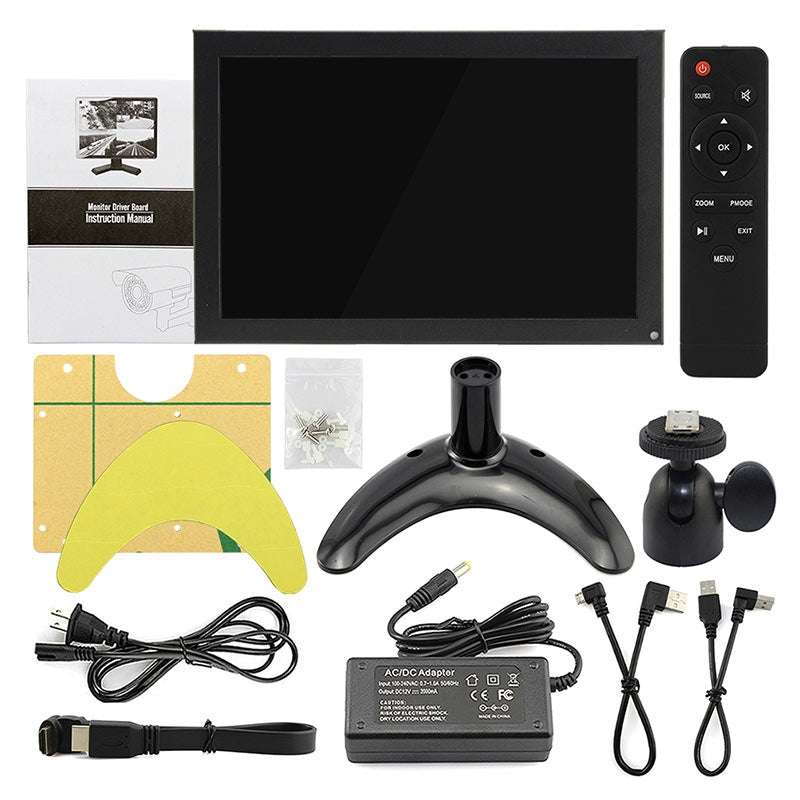

Package list
- 10.1Inch HDMI-compatible IPS LCD Monitor x1
- 12V/2A power adapter x1
- Remote control x1
- HDMI-compatible cable x1
- USB A to USB A cable x1
- USB A to Micro USB cable x1
- Acrylic Board x1
- Plastic Screws x4
- Plastic Standoff x4
- Plastic Nuts x4
- Screws (M4*10mm) x4
RR101 10.1 Inch Raspberry Pi Display IPS Portable Touchscreen Monitor
$109.99
