Raspberry Pi Pico Advanced Kit with 32 Modules and 32 Project Lessons

$42.99

People are viewing this right now

Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to...

Out of stock

Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability, and innovation ability, Raspberry Pi pico advanced kit will take you to create different scenarios and explore more applications.
The Raspberry Pi Pico Advanced Kit includes a Pi Pico based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 lessons. With this kit, you can complete several interesting and practical projects.

Feature

  • Suitable for all users, from beginners to advanced programmers.
  • 32 detailed lessons to lead your experiment.
  • 32 kinds of sensor modules and the smart cart can also be customized for interesting functions.
  • Compatible with any of your favorite platforms and operating systems.
  • Raspberry Pi Pico is a lightweight, compact, high-performance microcontroller multifunction board using a dual-core ARM Cortex-M0+ processor.
  • More powerful functions

Components of a Raspberry Pi Pico

Explore Project with Raspberry Pi Pico Advanced Kit

In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming!

RGB Colorful Light
Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, so as to form a breathing light effect in a cycle.
Electronic Clock
The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.
Traffic Light
Control the red light to turn on, the red light goes off after the 4-Bits digital tube counts down for 30 seconds; then the yellow light flashes 5 times with a time interval of 0.3 seconds; finally the green light turns on for 10 seconds and then turns off, reciprocating, simulating the effect of traffic lights.
Billboard
The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.
Plant Doctor
Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.
Alarm of Fire
Simulate a fire alarm system, judge whether a fire occurs by judging whether the induction probe of the flame sensor detects the fire source, control the RGB lights to flash red and blue, and display the alarm information on the LCD1602 liquid crystal screen.
Obstacle Avoidance Car
Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, so as to achieve the effect of the obstacle avoidance car.

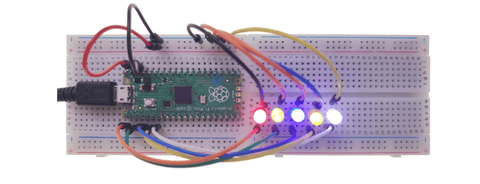

Colorful Flowing Light
Through the GP port of the Pico, the 5 LED lights are controlled to light up in turn, and then turn off in turn to form a Colorful flowing light.

    Specification of the Raspberry Pi Pico:

    • 21 mm × 51 mm form factor
    • RP2040 microcontroller chip designed by Raspberry Pi in the UK
    • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
    • 264KB on-chip SRAM
    • 2MB on-board QSPI Flash
    • 26 multifunction GPIO pins, including 3 analog inputs
    • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
    • 1 × USB 1.1 controller and PHY, with host and device support
    • 8 × Programmable I/O (PIO) state machines for custom peripheral support
    • Supported input power 1.8–5.5V DC
    • Operating temperature -20°C to +85°C
    • Castellated module allows soldering directly to carrier boards
    • Drag-and-drop programming using mass storage over USB
    • Low-power sleep and dormant modes
    • Accurate on-chip clock
    • Temperature sensor
    • Accelerated integer and floating-point libraries on-chip

    Package list

    1x Raspberry Pi Pico with Soldered Pin headers
    2x 400 holes Solerless Breadboard
    10x Colorful 5MM LEDS:1pcs each in green,red,blue,yellow and white
    1x RGB module
    1xButton
    1x Sound Sensor
    1x Mini PIR motion sensor
    1x Photoresistor Module
    1x Laser Transmitter
    1x Passive buzzer
    1x Vibration Sensor
    1x Mini magnetic spring module
    1x Soil moisture sensor
    1x Rotary Potentiometer
    1x DC motor with male Dupont Wire + fan blade x 1
    1x 9G servo
    1x Dual-axis XY Joystick Module
    1x RC522 RFID Module
    1x 4 Bits Digital LED Display Module
    1x Traffic Light Display Module
    1x Rotary Encoder Module
    1x 1602 LCD Display Module(Blue)
    1x Temperature & Humidity sensor
    1x Raindrops Module
    1x Flame Sensor
    1x OLED Module
    1x Membrane Switch Keyboard
    1x Smart car Kit
    2x Crash Sensor
    2x Line Hunt sensor
    1x Ultrasonic Sensor
    1x Infrared remote control x 1
    1x Micro USB Cable(30cm)
    1x 170 holes Solerless Breadboard
    1x 65 Jumper Wire
    1x 20CM Male to Female Dupont Wire
    1x Clear Case
    2x M2.5*30mm Copper Pillar
    10x Phillips Pan Head Screw
    10x M2.5 Nickel Hex nuts
    1x 2 INCH dual-purpose screwdriver
    1x Magnet(Diameter:8mm Thickness:5mm)
    1x DC stepper motor driver board
