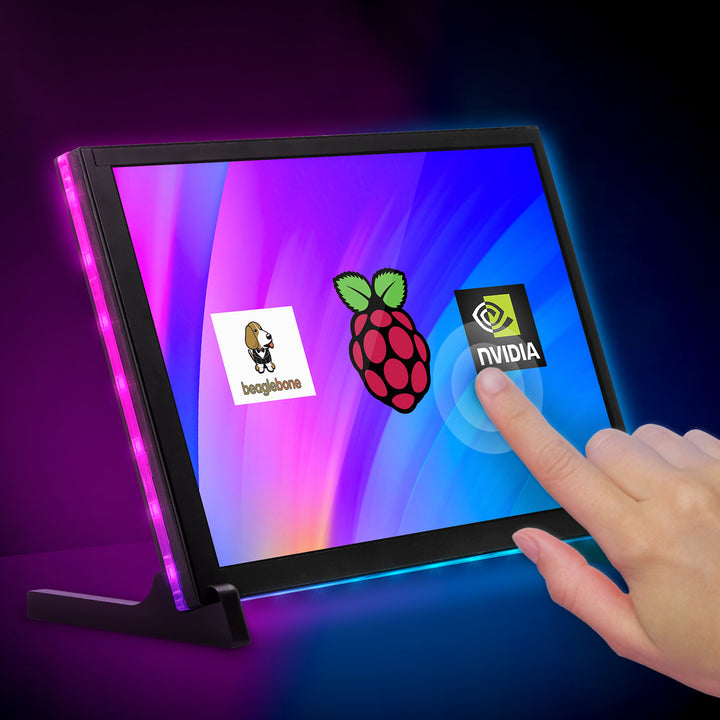

10.1 inch meteor screen
19 modes of RGB Animated light
10.1 inch Raspberry Pi Touch Display

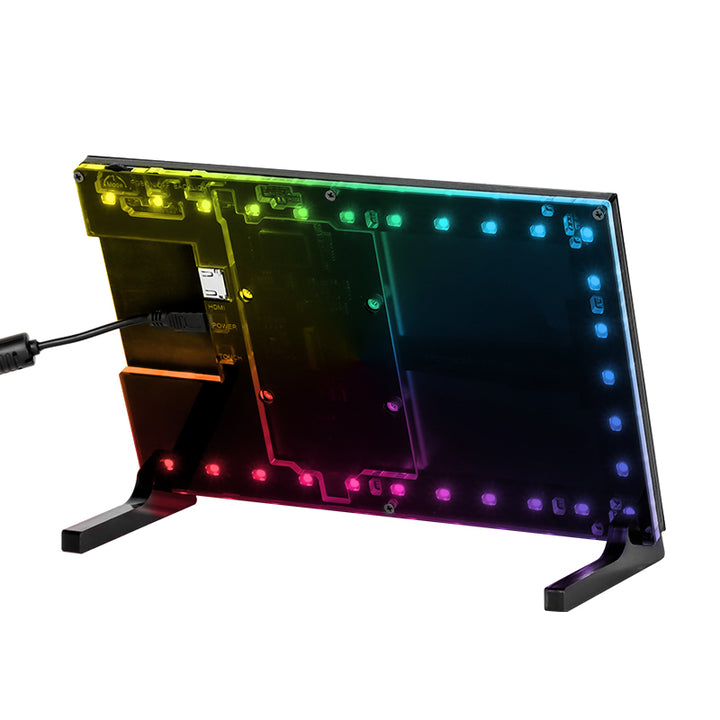

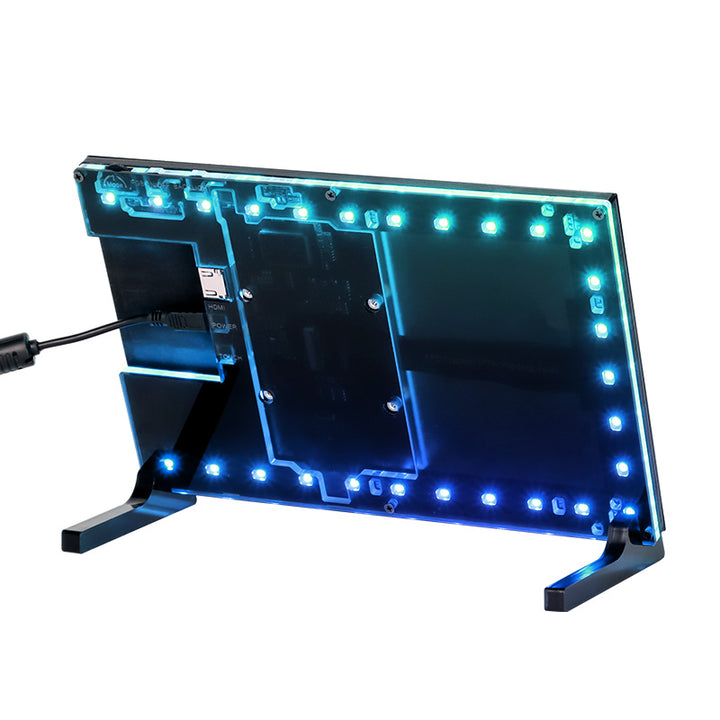

back side of the 10.1 inch RGB screen
Meteor screen with animated light
10.1 inch connects with Raspberry Pi

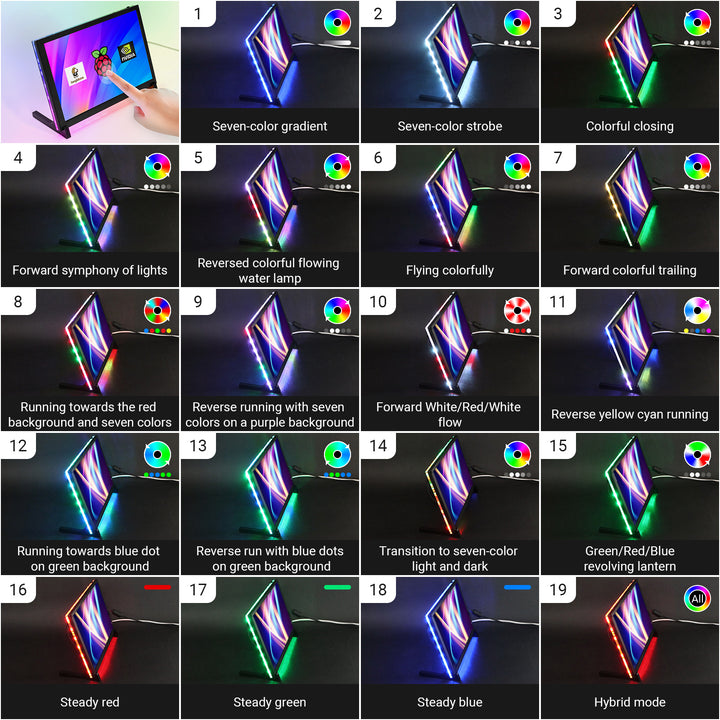

Variety of RGB animatio lights
10.1 inch IPS HD Touch Screen

Meteor Screen 10.1" IPS HDMI-compatible Capacitive Touch Screen with RGB Animated light compatible with Raspberry Pi, Jetson Nano, Beaglebone

$111.99

With RGB running light design, this 10.1-inch IPS high-definition touch display provides a resolution of 1280 x 800, supports Raspberry Pi, Windows, Linux, Ubuntu and other systems, and is also compatible with Raspberry Pi 3/3B+/4B, Jetson Nano, Beaglebone, Banana Pi and other mainstream development boards.

Description

Description

This 10.1-inch IPS HD touch display provides resolution of 1280 x 800 and supports multiple systems including Raspberry Pi, Windows, Linux, Ubuntu, etc. and it is also compatible with Raspberry Pi 3/3B+/4B, Jetson Nano, Beaglebone, Banana Pi, and other mainstream development board. The biggest difference between it and other screens is the RGB water light design on its back, which not only has 19 lighting modes to choose from but also can adjust the brightness. With the exclusive bracket, you can easily create a cool atmosphere together with the lights. HDMI-compatible communication supports plug and play and can be used in multiple scenarios such as Raspberry Pi screen, computer expansion screen, party entertainment system, etc.

It supports 5-point touch and multi-touch gestures, such as click, press, zoom in/out, etc. fast response. With three buttons, you can adjust the screen backlight, RGB light switch, switch the light mode and adjust the brightness. Just use the included HDMI-compatible cable and USB cable to easily connect to the computer without additional operations.

10.1 inch IPS Monitor

IPS HD 1280*800

178°Full Viewing Angle, offering excellent image and video performance.

IPS HD 1280*800 Resolution

Capacitive 5-Point Touch

Smooth, Accurate and Fast Response.

capacitive 5 point touch

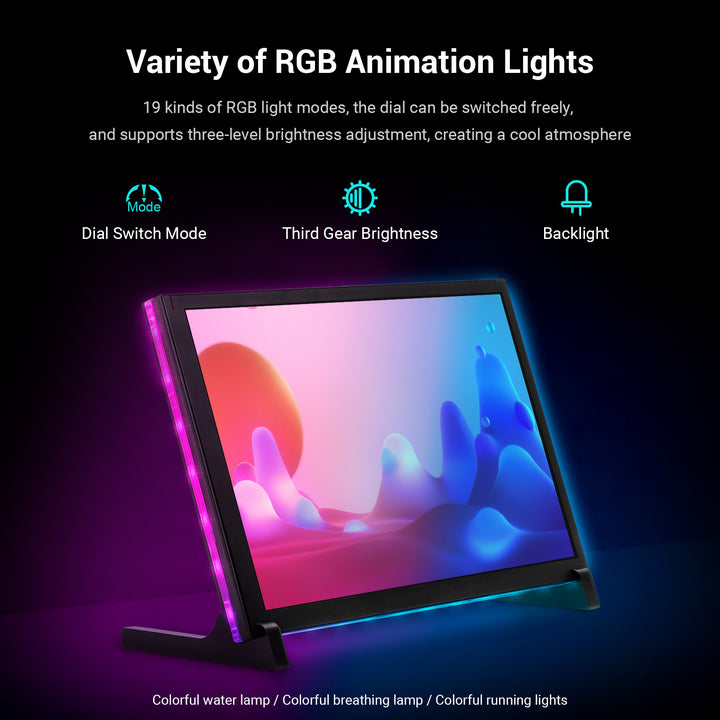

Variety of RGB Animation Lights

19 kinds of RGB light modes, the dial can be switched freely, and supports three-level brightness adjustment, creating a cool atmosphere.

variety of RGB Animated light

Support Multiple Systems, Plug and Play

Great Compatibility with various OS and devices.

supports multiple systems

compatible with multiple SBCs

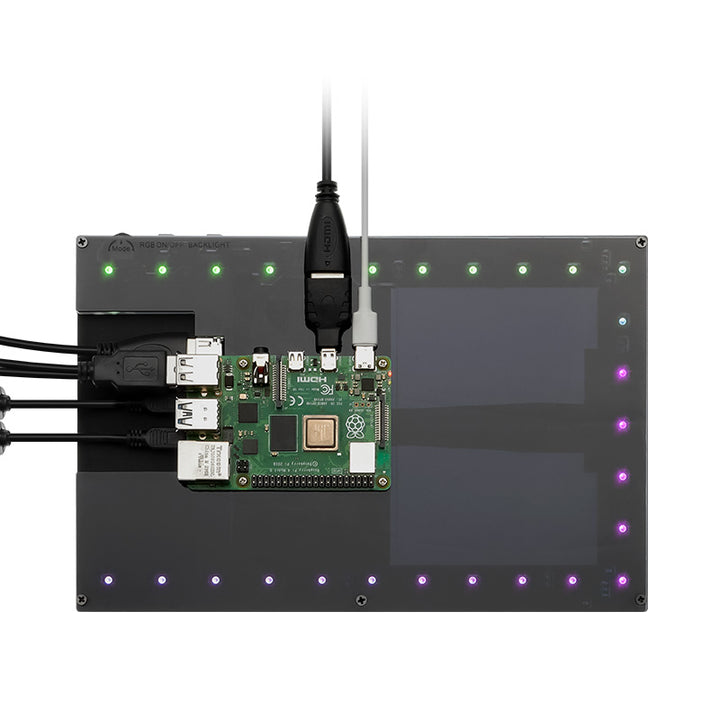

Connect with Raspberry Pi

The back side is reserved for Raspberry Pi 3/3B+/4B fixed assembly screw post, easily connect with Raspberry Pi

connect with Raspberry Pi

multiple applications

multiple applications


Meteor Screen port and buttons
10.1 inch monitor dimensions

Feature

  • IPS HD 1280*800 resolution and 178°Full Viewing Angle present you with an excellent visual experience.
  • RGB water lights on the back create a cool atmosphere, 19 kinds of customized LED Flow the mode can be switched freely.
  • Support backlight control
  • Capacitive 5-Point Touch, smooth, accurate and fast response
  • Use HDMI-compatible communication, touch-free drive, plug and play, and easy to use.
  • Support Windows, Linux, Ubuntu, Kodi, etc.
  • Compatible with Raspberry Pi 3/3B+/4B, Jetson Nano, Beaglebone

Specification











Display Panel

Screen Size

10.1 inch

Touch

Capacitive 5-Point Touch

Backlight Control

Support

Digital input

HDMI-compatible

Panel brightness

300cd / m²

Contrast

700: 1

Resolution

1280X800

Viewing angle

178°Wide Viewing Angle

Appearance Dimension

239*157.5*12.6mm

Active display touch area

216.57*135.36mm

Power Supply

DC 5V-2A

Compatibility

compatible with Raspberry Pi 3/3B+/4B

Power consumption

5.29w(100% brightness without lighting LED string lights)

Panel

6H Toughened Panel

Net weight

540g

RGB light string

RGB Light Model

3535 models, RGB full-color light

Location

Located on the back of the screen, U-shaped layout

Quantity

27 pcs lamp beads, the interval is about 22mm

Brightness

A total of three gears (with button adjustment)

Power consumption

7.6W (RGB 100% brightness, screen 100% brightness)

Mode

19 Modes



Button

Backlight

Press it once to increase the brightness by 10%. After reaching 100%, press it again to return to 10%; press it for 3 seconds to turn off the backlight and press it again to restore the original brightness

RGB ON/OFF

Turn on the power to automatically start the light (the running light mode when the power was turned off the previous time), click to turn off the marquee function, and then press to turn on the marquee (run the previous mode)

RGB Mode(dial)

Toggle left: Last light mode

Toggle right: Next light mode

Middle press: marquee light brightness adjustment; (preset three gear adjustment, from dark to bright in turn, note: there is no light-off function)

 Noted: In the case of 5V 1A, RGB is not turned on, and the brightness can only be adjusted to 90%
RGB turns on 3-level brightness, and the brightness can only be adjusted to 30%

Package List

  • 1x 10.1 inch monitor
  • 1x HDMI-compatible Cable
  • 1x Micro USB Cable(45cm)
  • 1x Micro USB Cable(100cm)
  • 1x M2.5 Screw Pack
  • 1x Phillips screwdriver
  • 2x Bracket
  • 1x Micro HDMI-compatible Adapter
